Durable Metal Drain Covers Grates Ductile Cast Iron For Highway / Airport

Product Categories
Xianxian Shuangxing Casting Co., Ltd.
Contact Now

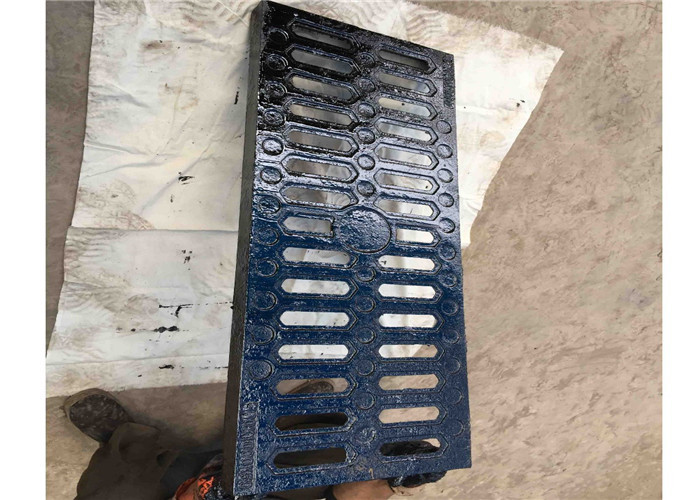

Durable Metal Drain Covers Grates Ductile Cast Iron For Highway / Airport

  • 1
  • 2

Brand Name : SHUANGXING

Model Number : 400*600*50mm

Certification : ISO

Place of Origin : Cangzhou, Hebei

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 tons per month

Delivery Time : about 15 days after received the balance money

Packaging Details : wooden pallet/plastic

Material : Iron

feature : anti-frozen/durable/shock absorption/security

application : sidewalk/highway/airport

place of origin : Cangzhou,Hebei

Size : 400*600*50mm

OEM : YES

Contact Now

Durable Metal Drain Covers Grates Ductile Cast Iron For Highway / Airport

product parameters

Name Drain Grate Cover
Material Ductile iron GGG50/7 gray iron
Standard 1563/ C250 /D400 / EN124
Class E600 F900 A15 B125
Shape Square / Round / Rectangle Triangle and other shape
Size From 300*300*50 to 1000*1200*60 or custom size
Paint Bituminous black
Advantage Longevity corrosion resistance, Excellent anti-pressure
Molding Depends on the design
Process Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection
Application motor vehicle Road, municipal administration, living quarters communications, electricity and water supply works
Certificate ISO9001:2000
Products manhole cover & gratings and grates, gate valve, pipe fittings, radiator, surface plate, surface box

product used

The product was used for the roads / idewalk / highway / airport

Durable Metal Drain Covers Grates Ductile Cast Iron For Highway / Airport

D400 Driveway Drain Grates Drain Channels Grating and Manhole Covers
a) Ductile Iron GGG500-7 & 400-12
b) Grey Iron GG20
Designs .
a) EN124 A15, B125, C250, D400, E600 and F900
b) A60005 for casting design
c)Major standards designs available
d) As per customers' drawings or samples
Process
c) Molding boards
d) Green sand with hand molding
Coating
a) Cold applied black bitumen
b) Without coating
c) Coating as per customers' requirement
Bearing Class / Loading Capacity of Cast Iron Manhole Covers

Class Apply to Bearing Remarks
EN124-A15 Areas where only passed by Pedestrians and Bicycles. 15KN
EN124-B125 Footways, parking lot or similar areas. 125KN HOT-SELLING
EN124-C250 The edge combinative area of vehicle road and the pavement. 250KN
EN124-D400 Vehicle area and urban arterial road. 400KN HOT-SELLING
EN124-E600 Shipping port and parking apron area. 600KN
EN124-F900 Airplane taxiway and huge dock. 900KN
